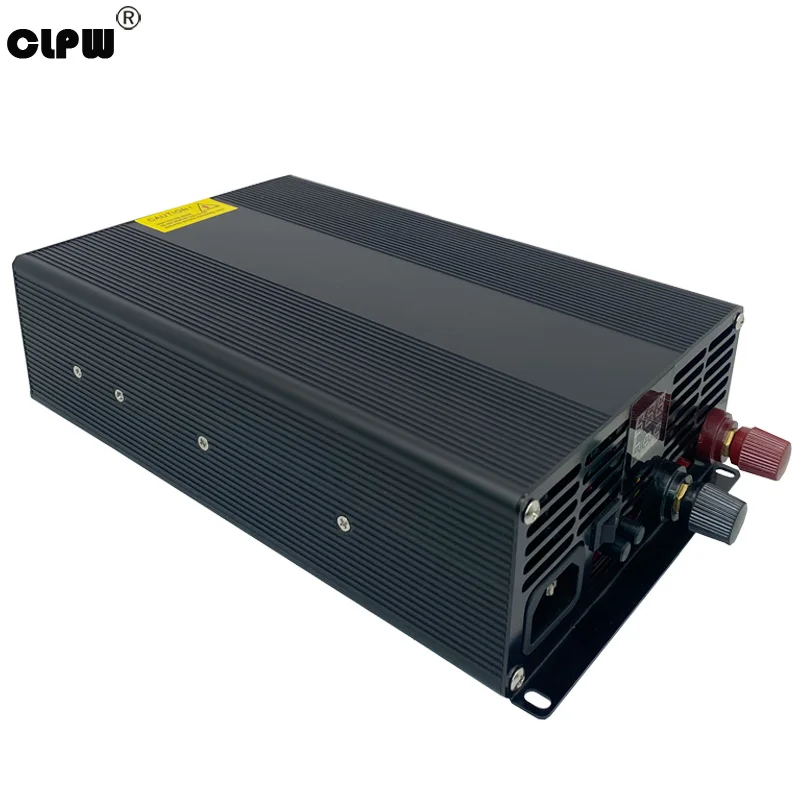

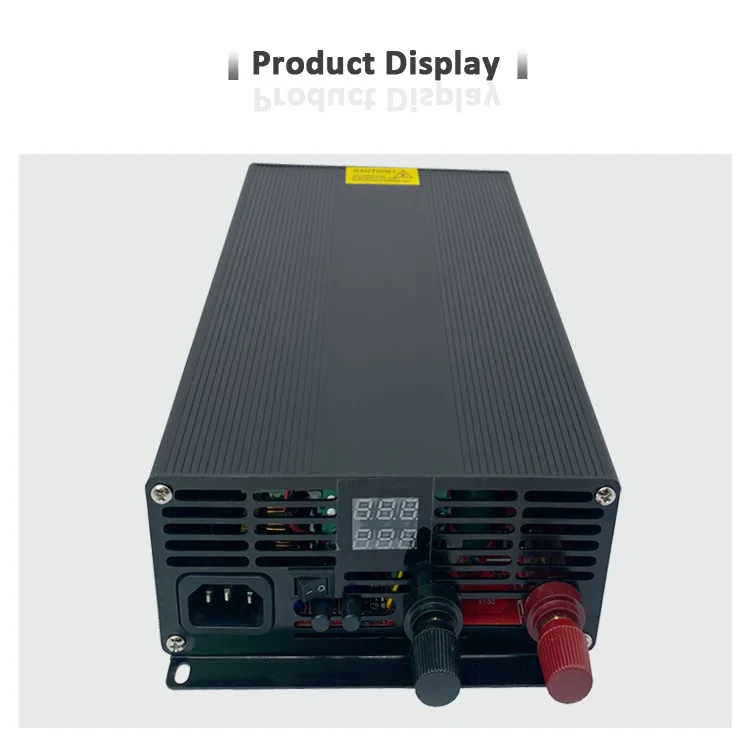

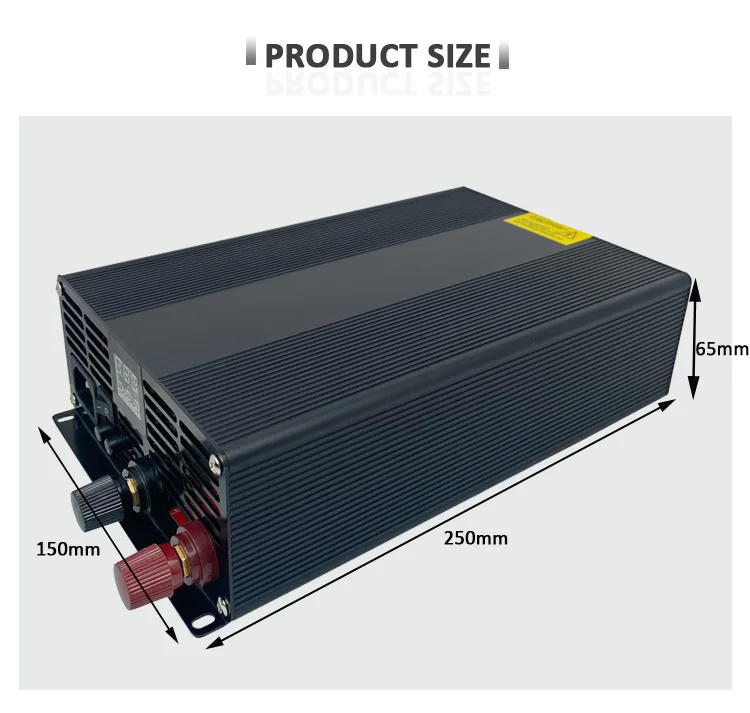

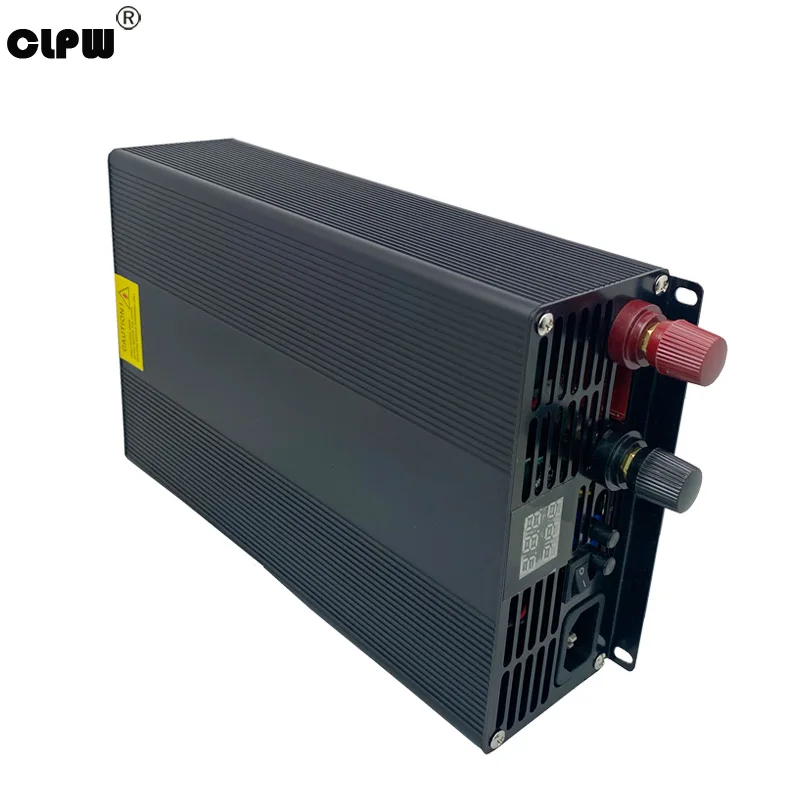

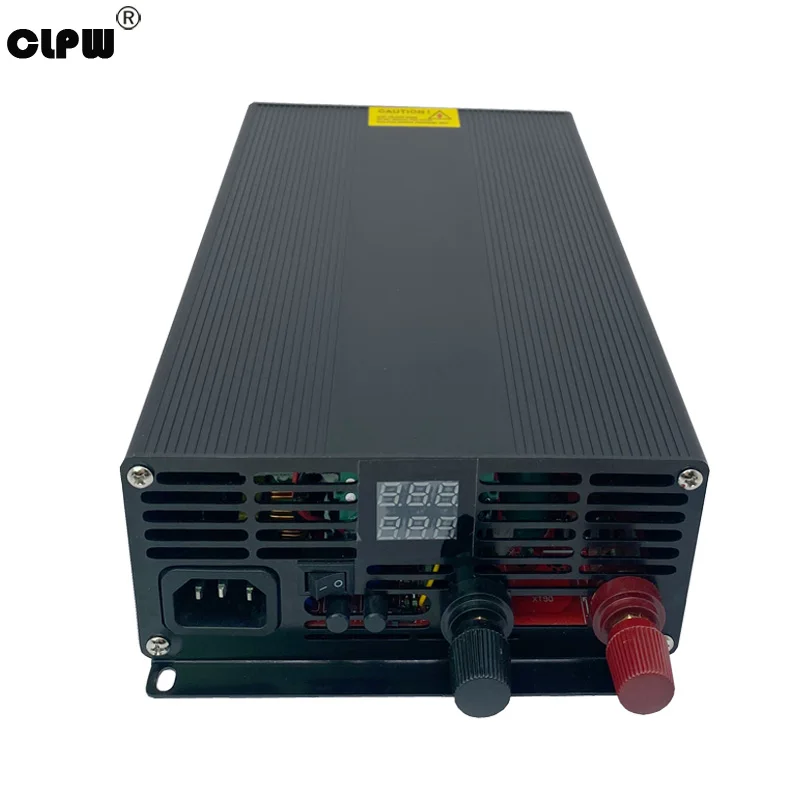

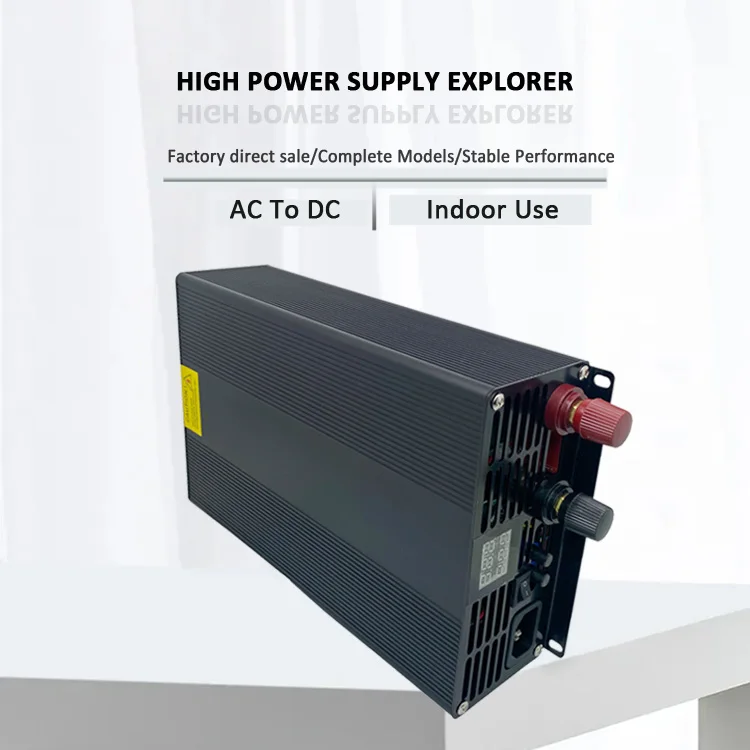

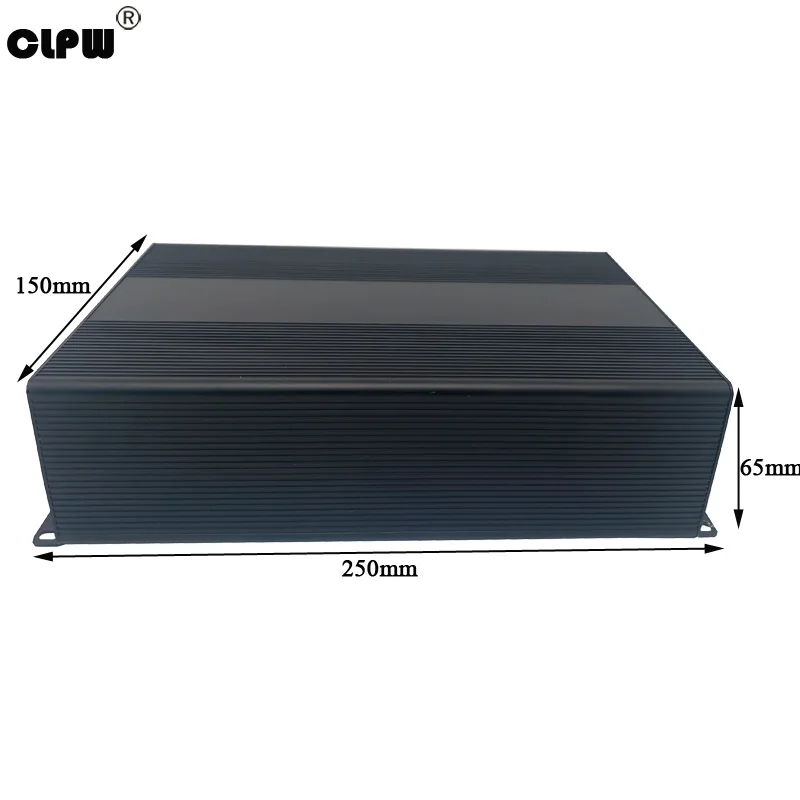

LED Display Battery Charger Adjustable Switching Power Supply

& Free Shipping

Add to WishlistAlready In Wishlist

Ask a Question

Free shipping on orders over $90!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

SKU: 1005009870786901 Categories: Smart Devices, Smart Shop Tag: Power Supply Brand: HT Mall, Premium Delivery

Description

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply

Kindly Reminder

Charging and Battery Safety If you use the power supply for charging a battery, it is highly recommended to load 80% power maximum to avoid a big current surge damaging the power supply. It is suggested to communicate with the seller to limit the current within a range by following your battery’s parameters.

Display Accuracy Notice If you have high expectations for current display accuracy, DO NOT order, since the LED board of ours is not high precision. There may be a little difference; the purpose is only for users to have a rough reference. Do not compare it with some high-precision device, which must need an extremely high price to have it.

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply 、

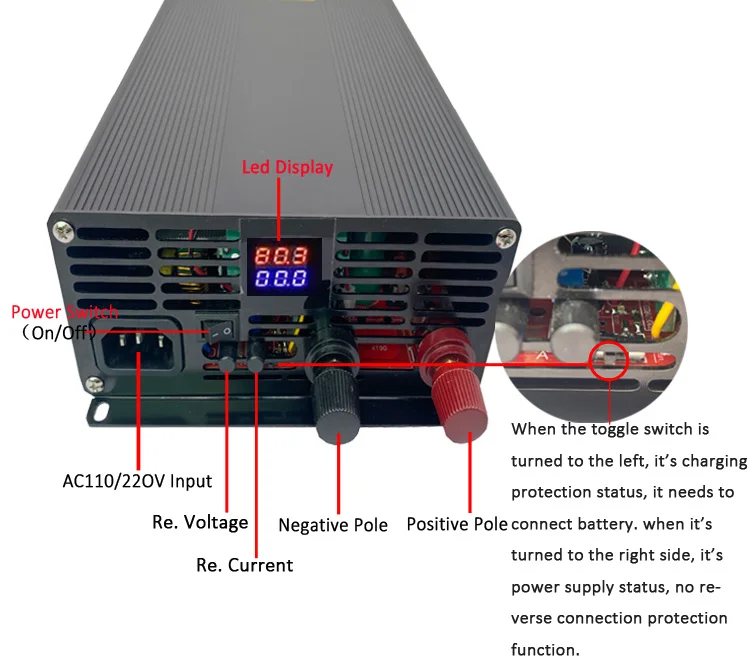

One Picture To Show How To Connect ?

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply

Power Supply Charging Functions

1. Charging Protection Mode (Toggle Switch to Left) In this mode, the power supply automatically identifies positive and negative polarity.

Correct Connection: When the battery terminals are connected correctly, the system automatically begins charging, and the output indicator light turns green.
Reverse Connection: If the battery terminals are reversed, the reverse connection indicator light turns red, and the system enters protection mode with no output.
Reset Procedure: When replacing a battery, the system must be powered off to reset. Once the green indicator light goes out and the system has successfully reset, you may connect the next battery.

2. Power Mode (Toggle Switch to Right) In this mode, the device provides direct output without reverse charging protection features.

Level 2 Protection: If a human error occurs or the battery is reversed while in power mode, the system utilizes Level 2 protection. A reverse protection diode and DC fuse will activate to cut off power output.
Restoration: After a Level 2 protection event, the corresponding protective components must be replaced to restore operation.

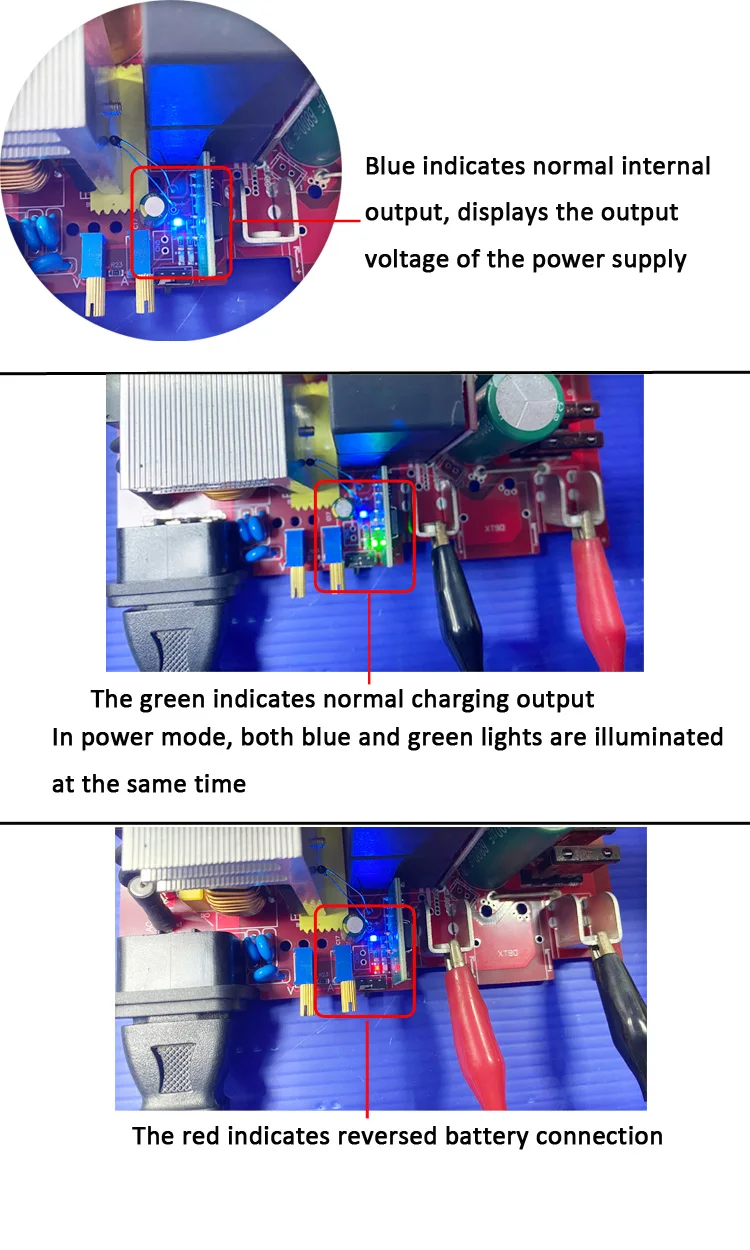

3. Indicator Light Guide

Charging Mode:
- Blue: Normal internal output; displays power supply output voltage.
- Green: Normal charging output.
- Red: Reversed battery connection.
Power Mode:
- Blue and Green: Both lights are illuminated simultaneously.

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply

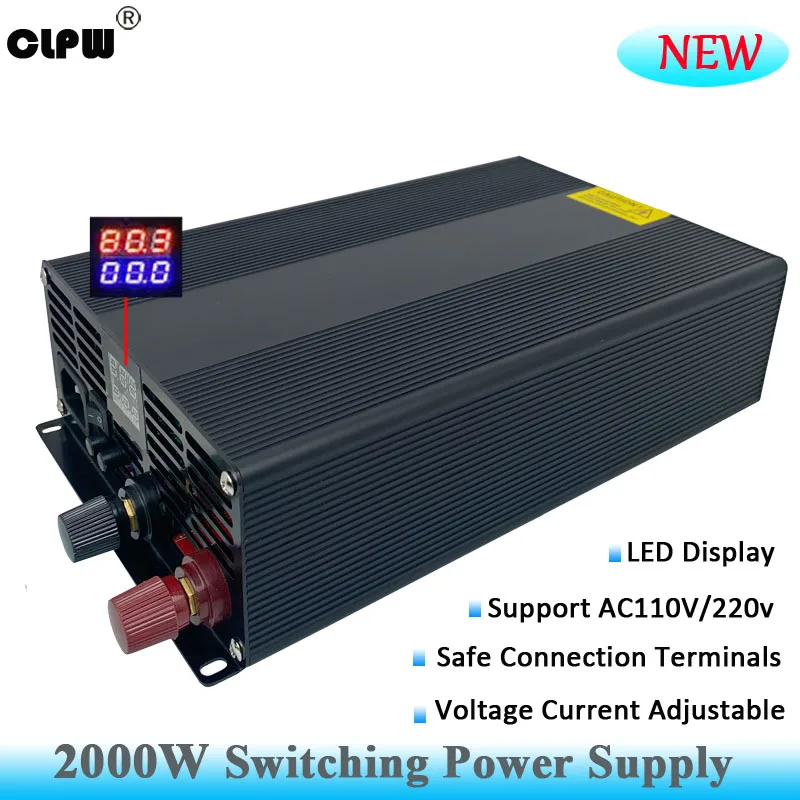

Product Overview: CLPW DL-2000W Power Supply

Specifications

Feature	Details
Brand Name	CLPW
Model Type	DL-2000W
Output Power	2000W
Input Voltage	110V/220V
Output Voltage	24V / 28V / 30V / 36V / 45V / 48V / 55V / 60V / 70V / 80V / 90V / 100V / 110V / 120V
Output Type	Single
Conversion Efficiency	≥90%

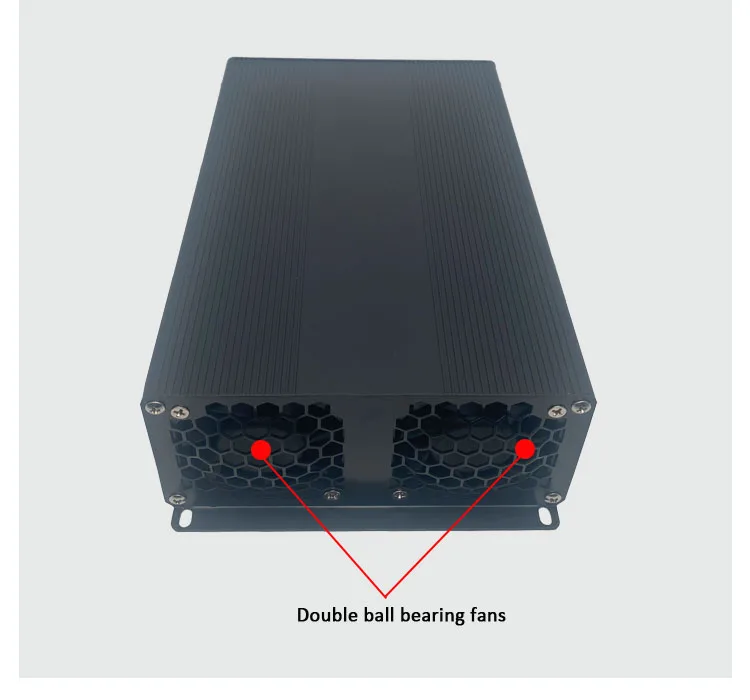

Cooling Type	Fan Cooling (with slight noise)
Shell Material	Metal Case / Aluminum Base
Protection	Over-temperature, Over-current, Short-circuit, Over-voltage
Warranty	3 Years
Certificates	CE, ROHS

Key Features

Digital Display: Built-in digital readout for easy monitoring of power parameters.
Versatile Application: Suitable for battery charging (lead-acid/Lithium), LED lighting, CNC machinery, DC motors, pumps, industrial control systems, communication equipment, audio amplifiers, and more.
Durable Build: Robust metal housing with an aluminum base for efficient heat dissipation.

Package & Delivery

Packing Include: 1pc Power Supply (Note: Plug and power cord are excluded).
Packing Type: Standard export packing or customized per buyer requirements.
Delivery Time:
- Samples: 1–5 days
- Bulk Orders (500+ pcs): 7–15 days

CLPW AC To DC Regulate 2000W 24V 28V 36V 48V 60V 72V 80V 90V 100v LED Display Battery Charger Adjustable Switching Power Supply

Information for Buyers

Professional Manufacturer: As a direct professional manufacturer specializing in high-power items, we guarantee both competitive pricing and superior quality.
Proven Track Record: Before launching our HT Mall store, we operated domestically on Alibaba for several years with a reputation for honesty and integrity.
Stock Availability: All listed items are in stock. For large orders, please contact us via email to confirm discount pricing and lead times.
Customization: Not all available items are listed in our store. If you require a special voltage, please email us; we can customize products to meet your specific requirements.
Quality Construction: All our circuit boards feature dip three-proofing insulation paint on the back to ensure long-lasting quality.
Secure Packaging & Warranty: Due to the weight of our power supplies, we package all items securely to prevent damage. In the unlikely event of transit damage, please contact us immediately upon receipt to claim your warranty.
Support & Testing: We suggest testing your product upon arrival. Should you encounter a quality issue, please contact us and provide a photo or video for verification so we can resolve the matter quickly.
Feedback Policy: If you have concerns regarding our quality or service, please email us directly. We guarantee a reply within 24 hours. We kindly ask that you do not leave negative feedback before communicating with HT Mall.
Partnerships: We accept both OEM and ODM orders. We are also actively seeking distributors and agents worldwide; we welcome your inquiries if you are interested in partnering with us.

Special Tips for Safe Usage

Indoor Use Only: This is an indoor power supply. Do not use it outdoors or in high-temperature environments.
Ventilation: Please ensure there is at least 50mm of clearance around the cooling fan to allow for proper ventilation.
Load Calculation: Please calculate your load power accurately. To prevent long-term overload, it is suggested to operate the device within 80% of its rated capacity (e.g., for a 1200W unit, the recommended load is 1200W × 80% = 960W).
Short Circuit Prevention: Do not allow the output voltage to short-circuit. If a short circuit occurs, it is suggested to power off the unit for one minute.
Wiring Safety: Please double-check that all power lines are connected correctly. Connecting the wiring backward is strictly prohibited before powering on.

Feedback

Positive Reviews: If you are satisfied with our product, please leave a positive 5-star rating; your support is greatly appreciated.
Suggestions: We sincerely welcome any comments or suggestions you may have; please send them to us via email.

Additional information

Type	Power Supply
EU LVD Voltage	High voltage: Above 50Vac or 75Vdc
Rated Capacity	＞1000VA
