Description

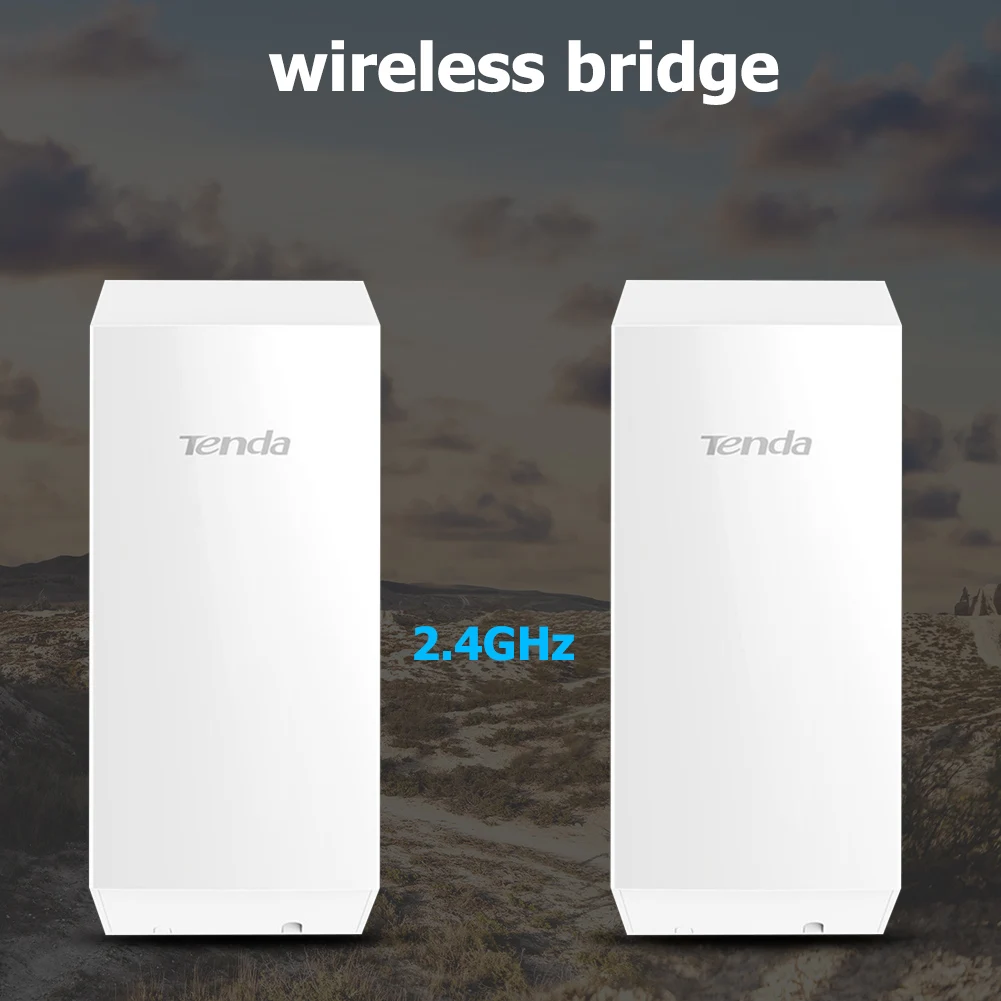

Tenda O1 Outdoor Access Point 300Mbps Long Range Smart Manage Router CPE 2.4GHz PoE Wireless Bridge 8dBi Transmission Waterproof
About this item
-
2.4GHz 11n 300Mbps: The maximum wireless speed of O1 can reach 300Mbps, conforms to the frequency range of 2.4GHz
-
500m Transmission: O1 integrates with an 8dBi directional antenna to provide optimized transmission quality. Collects and maintains a stable signal for a wireless network connection of up to 500 meters
-

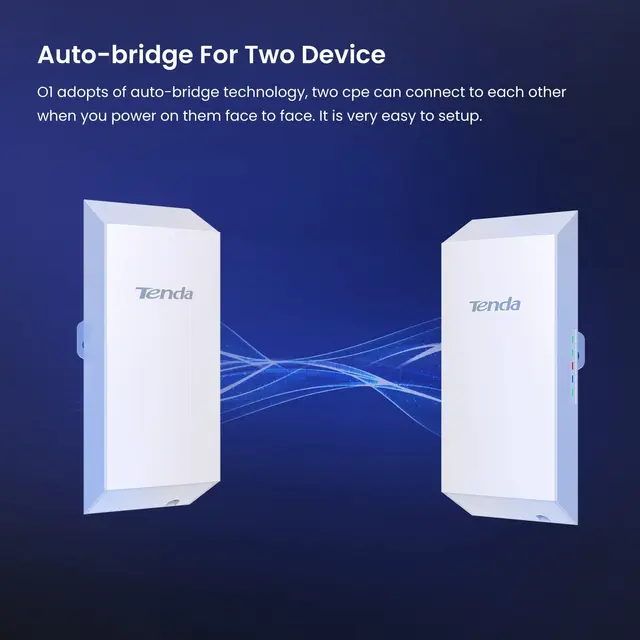

Auto-bridge for two devices: O1 adopts auto-bridge technology, and two CPEs can connect when you turn them on face-to-face. It is very easy to set up
-
Long-distance wireless connection: One works as AP mode and another works as Station mode to create a long-distance PtP wireless connection for private ISP wireless connectivity, CCTV surveillance, and data transmission
-

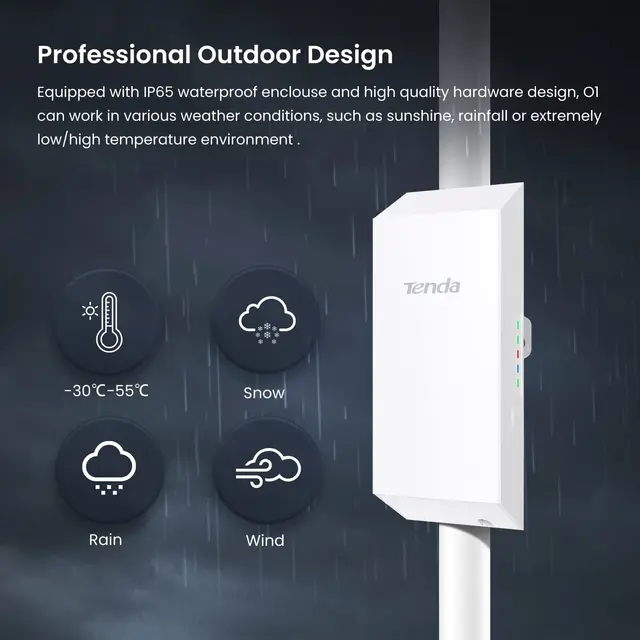

Professional Outdoor Design: Equipped with an IP65 waterproof case and high-quality hardware design, O1 can work in various weather conditions, such as sunshine, rain, or extremely low/high temperature environments
Tenda O1 2.4Ghz
500mOutdoor Point-to-Pointt CPE
Extend the network to another building & extend your monitoring range.

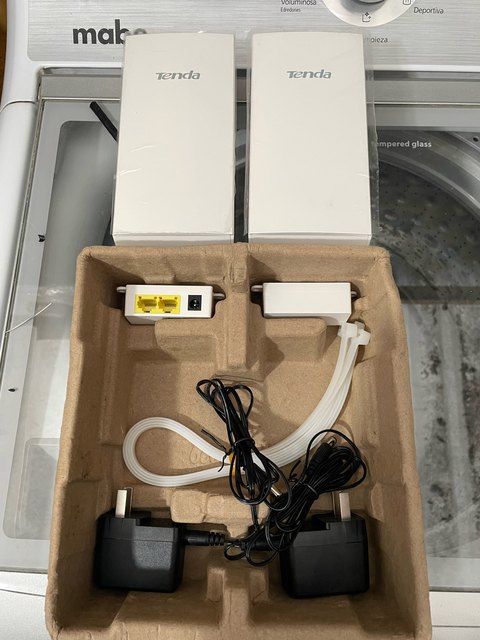

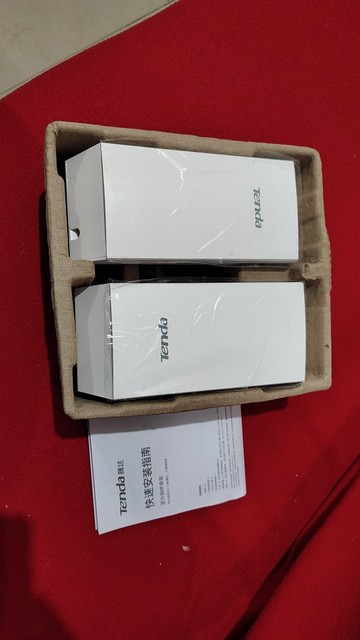

Packaging: 2x O1-2.4G, 2x power adapter, 2x PoE adapter.
Point to Multi-Point Connection
Point to Point connection(AP+Client Mode

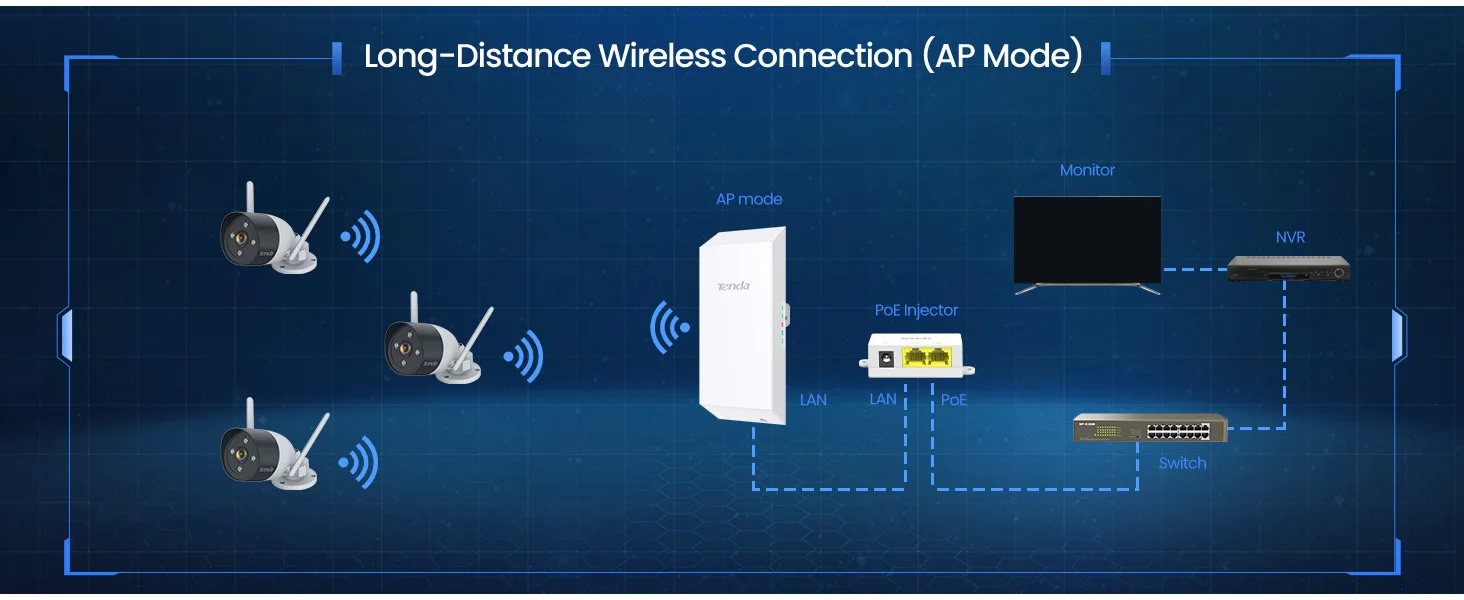

Long-Distance Wireless Connection (AP Mode)
Extend the network to another building.ng.
You can share the network with others.

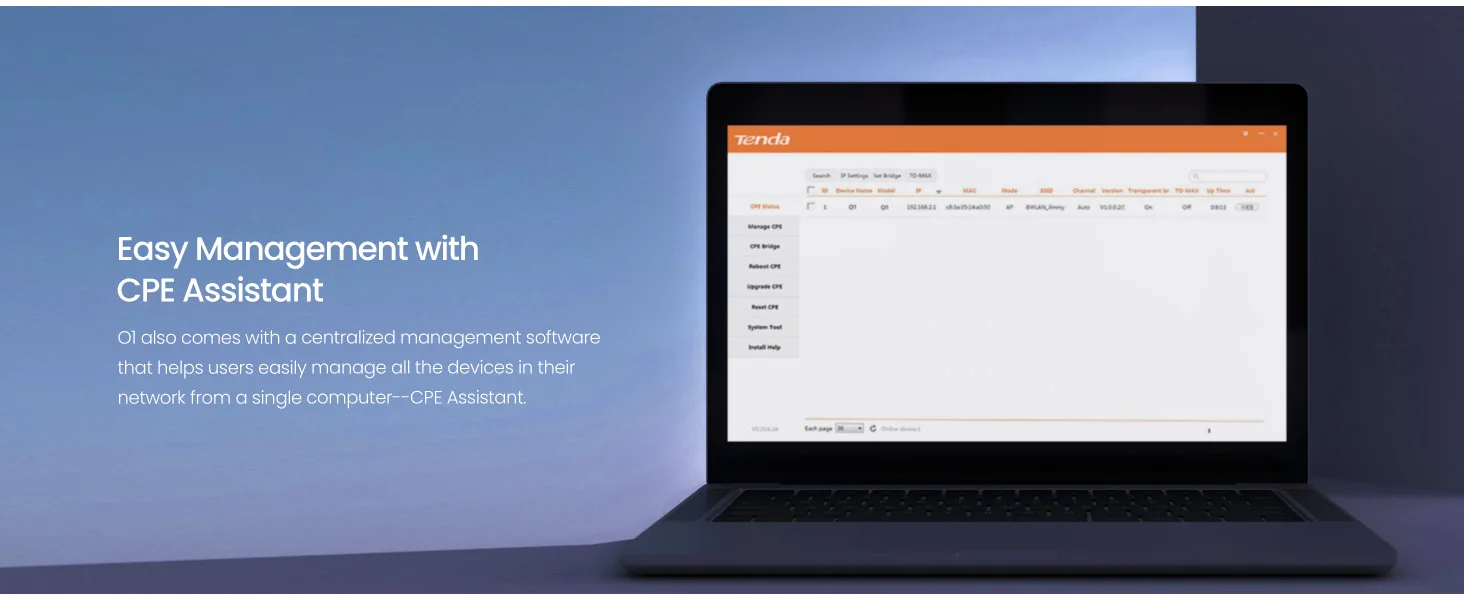

Easy Management with CPE Assistant
O1 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer–CPE Assistant.

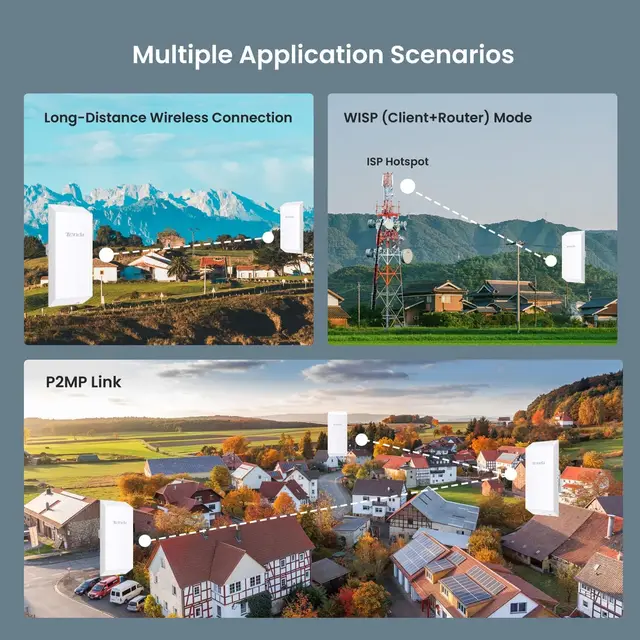

Wide Range Of Application Scenarios
Tenda O1 300Mbps Wireless Bridge AP Security 2.4GHz 8dBi Outdoor Point to Point for Elevator Monitoring Video Surveillance Transmission
Description:
Outdoor wireless network bridge designed for video surveillance of elevators, crane towers, communities, factories, orchards, scenic spots, and other scenes; the equipment works in the 2.4GHz frequency band, adopts 11n technology, and can provide up to 300Mbps wireless data transmission rate; built-in 8dBi high-gain directional antenna with stronger signal penetration. Based on a pole-mounted design, it can be directly installed on walls and columnar objects. It is beautiful and elegant; it adopts an industrial-grade, high-grade waterproof and dust-proof plastic shell, which can work in all kinds of wind, rain, and snow. And other outdoor environments.
Feature:
1. For video surveillance application scenarios, transparent bridge technology is adopted to allow the wireless bridge interface to forward all data packets, which mainly solves the problem that some NVRs cannot activate cameras, and NVRs cannot manage IPC across network segments.;
2. Built-in 8dBi high-gain directional antenna, the horizontal coverage angle is 60 degrees, the vertical angle is 30 degrees, the wireless transmission energy is more concentrated, and the transmission distance in a strong interference environment can reach 500 meters;

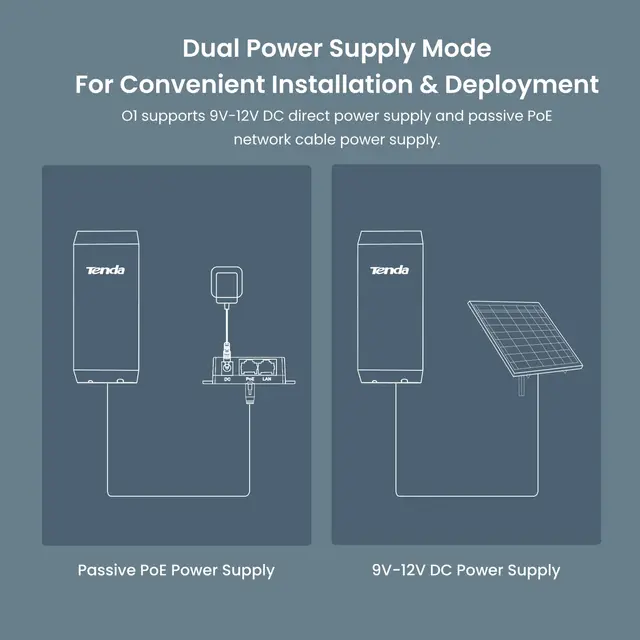

3. Support 9V-12V DC direct power supply and passive PoE network cable power supply. When the bridge is installed far away from the power socket, a passive PoE network cable can be used for the power supply. When the bridge is installed away from the power socket or the camera power supply line, when the device is near, use a DC direct power supply.

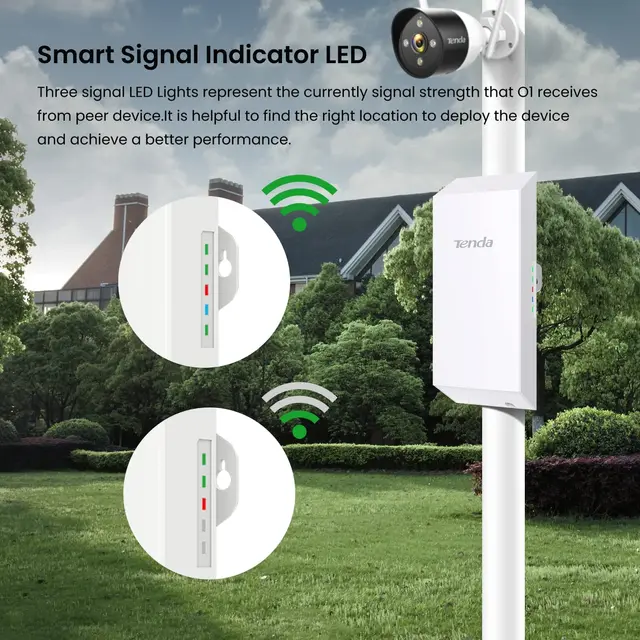

4. A multi-level signal strength indicator design is adopted, and different colors are used to display the signal strength of the current bridging peer device. When installing the equipment, you can find the best installation position and direction according to the on and off status of the signal indicator.
5. Adopting a high protection grade shell design, dustproof and waterproof grade up to IP65; high specification electronic materials, outdoor working temperature range -30℃ to 55℃, suitable for various severe outdoor environments such as wind, rain, and snow;
6. Support AP, client, and wireless WAN working mode, which can be used for long-distance point-to-point data transmission, video monitoring, and wireless connection to the ISP signal tower.
No.2674657054
Specification:
Working frequency band: 2.4GHz
Maximum access rate: 300Mbps
Ethernet interface: 1 10/100Mbps LAN port
Reset common button: 1
LED lights: 1 PoE/LAN, 1 WiFi, 3 signal strength indicators LED1, LED2, LED3
Antenna gain: 8dBi directional antenna
Antenna angle: horizontal angle 60 degrees, vertical angle 30 degrees
Input voltage: 9V-12V
Whole machine power consumption: 2.8W
Dustproof and waterproof grade: IP65
Input voltage range: 9V-12V
Power supply mode: DC power supply or passive PoE power supply
11b 1Mbps transmit power: 20dB
11n MCS7 transmit power: 17dBm
11b 1Mbps receiving sensitivity: -92dBm
11n MCS7 receiving sensitivity: -72dBm
Working mode: AP, client, wireless WAN
Transparent bridge: support
DHCP server: support
Diagnostic tools: support ping, Traceroute, signal scanning, Ping watchdog
Timed restart: support
Device management: support
Software upgrade: support
Device restart: support
Device restoration to factory settings: support
Configuration backup: support
Configuration restore: support
Log function: system log view
Wireless standard: IEEE 802.11b/g/n
SSID hiding: support
Number of SSIDs: 1
WPA encryption: support
WPA2 encryption: support
WPA2-PSK encryption: AES/TKIP
WPA-PSK encryption: AES/TKIP
WEP encryption: supports 6128-bit encryption
Wireless access control: support filtering based on for MAC address
Adjustable transmit power: support
AP isolation: support
WMM: Support
Client access restriction: Support wireless client RSSI threshold setting
Default setting:
Default login IP: 192.168.2.1
Default username: admin
Default password: admin
Working temperature: -30℃ to 55℃
Working humidity: 10%-90%RH (non-condensing)
Storage temperature: -30℃ to 70℃
Storage humidity: 10%-90%RH (non-condensing)
Product size: 194*80*68mm/7.64*3.15*2.7in
Application: monitoring video transmission in elevators/crane towers/communities/factories/scenic areas, and other scenes
Notice:
1. This product is a point-to-point wireless bridge. Generally, 2 of them are required to achieve point-to-point wireless bridging.
2. It can do 1 to 4, that is, 1 main network bridge and 4 sub-network bridges are used for wireless bridging;
3. It can transmit 500 meters, with a horizontal installation angle of 60 degrees and an upper and lower installation angle of 30 degrees;
4. This product can only be used as a wireless point-to-point bridge, and cannot be used as a wireless AP.
Note:
Due to the different monitor and light effects, the actual color of the item might be slightly different from the color shown in the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Note:
We will send the correct free plug adapter according to the destination ccountryYouu can also make a note to choose the plug, so we don’t accept any dispute of Language or a wrong adapter due to a mistake.
More hot-selling products:
F***k –
Valid product…tried at home…the only thing is the languages…only 2, English and Chinese. To be tested in open field. I hope they don’t disappoint
Customer –
Excelent
Customer –
just arrived much later than expected.
7***r –
It works well and delivery is very fast. Please also attach the Korean manual. I bought 3. If I need it, I will buy it again.
n***r –
I ordered a model for europe and they sent a model for the uk. It hasn’t been tested yet.
A***l –
Good material quality and fast delivery, I will test them to see if they work and if installation is easy, thank you.
M***z –
Very good product, it gives a signal of about 100 meters of distance between both modems, I have contracted 80 awnings and the other house receives 20 awnings.
l***t –
At the top, but the communication between the seller and the buyer is complicated, but if nothing is said, the goods are good.
l***u –
Very good quality/price products. Am testing the 50m and it works well, the wifi camera has 6 wifi modules, Sonoff. Thank you very much. I have already ordered two pieces of equipment for my neighbor.
n***n –
It’s good… currently using it…
T***k –
Due to an error by the ukrainian postal service, the parcel was not delivered to me, instead, the parcel was mistakenly sent back to the seller. Despite the inconvenience caused to him, the seller fully refunded the entire amount.
D***o –

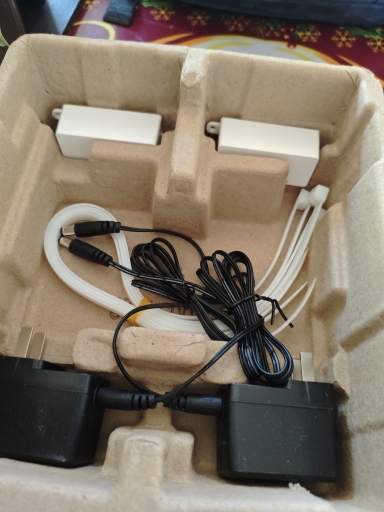

I haven’t used it yet, it includes the APs and two POE injectors to power them. When I install them, I will comment on more details.
D***N –
Excellent thank you
Customer –
excellent as described
F***s –
I loved it, I’m still going to try it.
Customer –
Before use
P***n –
Unfortunately, our government only wants money from them! I couldn’t homologate as the love government requests.
m***l –

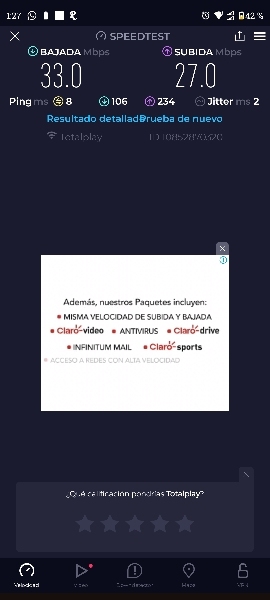

connect a pair about 150 meters apart, I raised them to the ceiling and hung them on a PVC tube and got approximately 30 Mbps which is a pretty decent speed, I highly recommend it.
